STAGE6 R/T PIT BIKE / MINIGP 305 - 325MM REAR SHOCK ABSORBER

STAGE6 R/T PIT BIKE / MINIGP 305 - 325MM REAR SHOCK ABSORBER

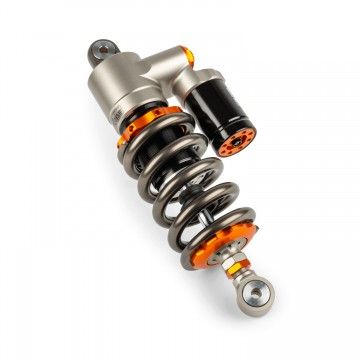

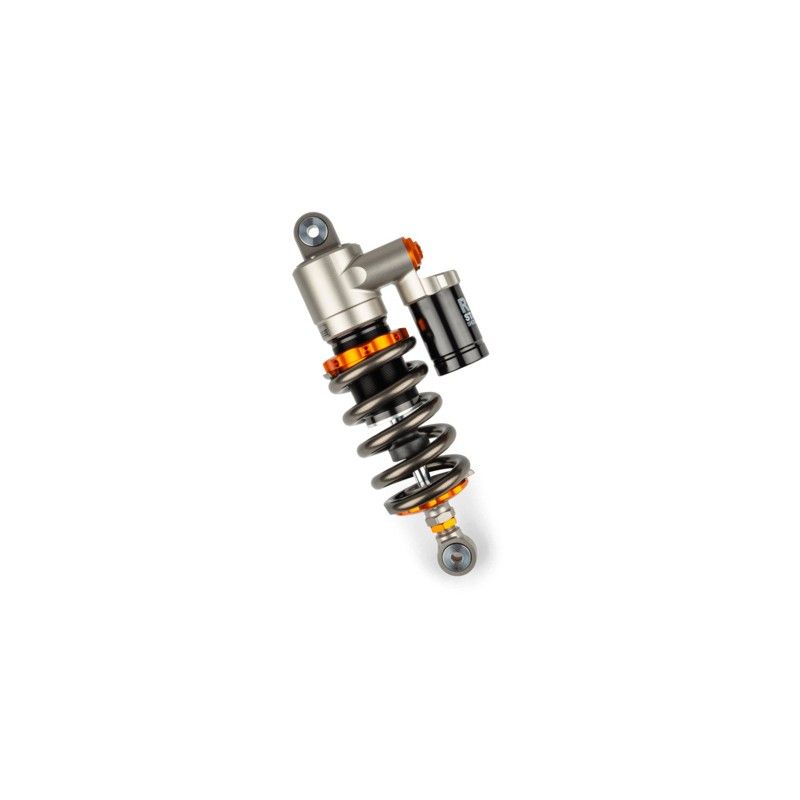

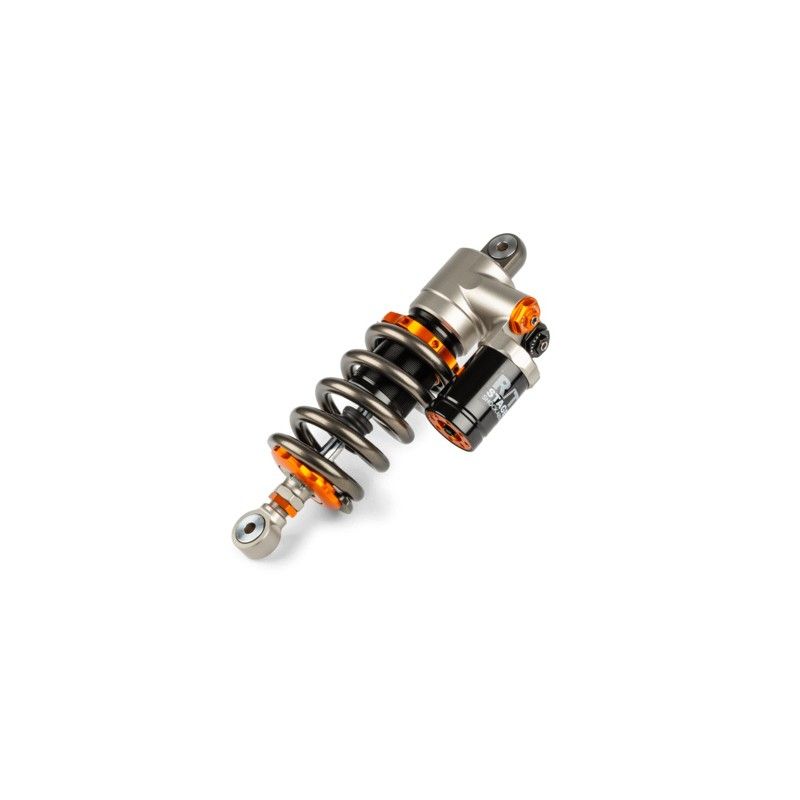

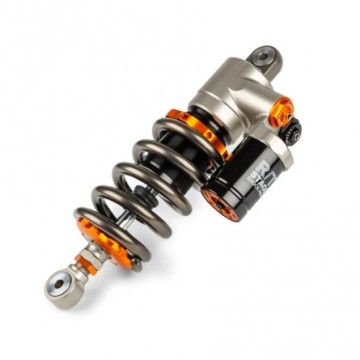

Stage6 R/T Pit Bike / MiniGP Rear Shock Absorber 305 - 325mm. Building on its long-standing experience and many victories in the field of suspension for small two-wheelers, Stage6 has developed a new shock absorber specifically for the Pitbike / MiniGP sector.

The shock absorber's construction and quality are the same as the award-winning R/T shock absorbers, which today represent the highest standard in the industry. Stage6 has made no compromises in any detail. All external and internal parts of this shock absorber are anodized, minimizing wear and oil contamination. This significantly contributes to the product's longevity and extends maintenance intervals as well as the suspension's performance consistency.

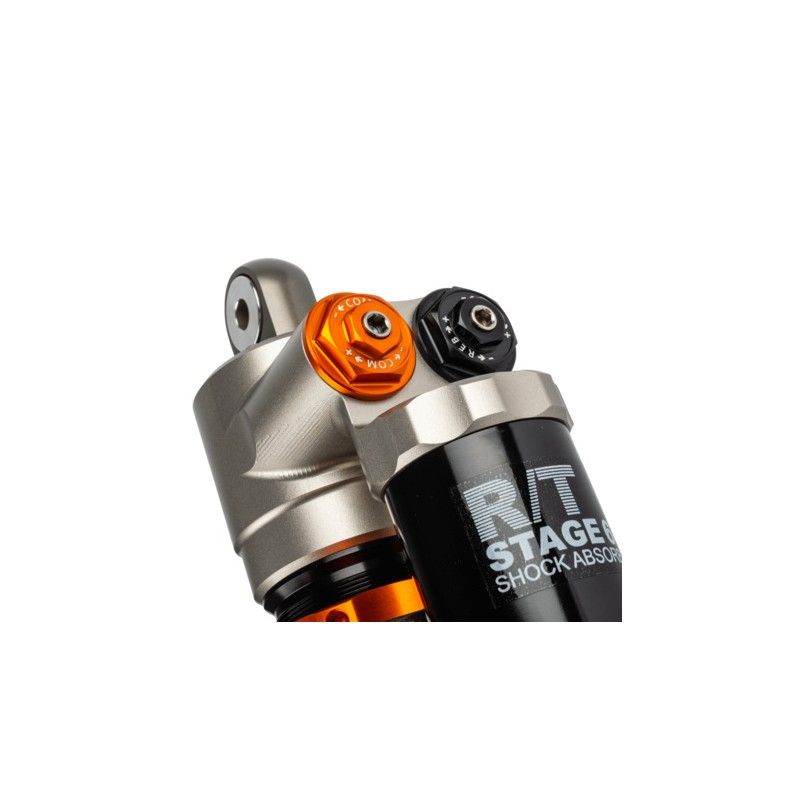

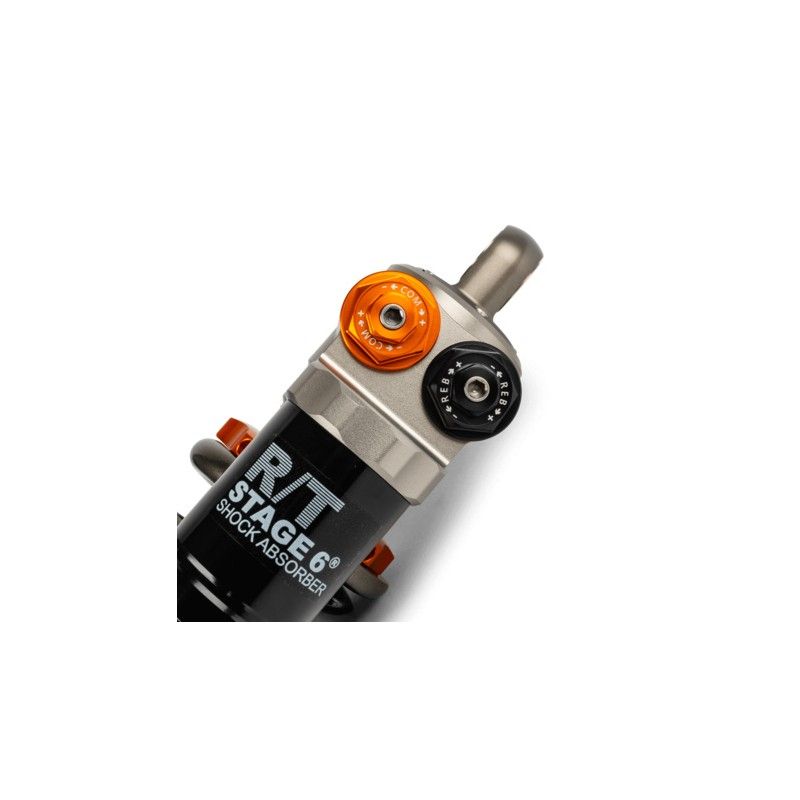

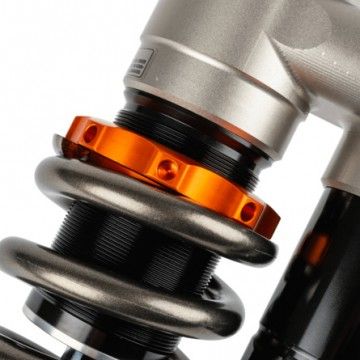

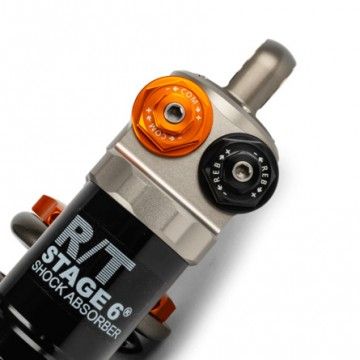

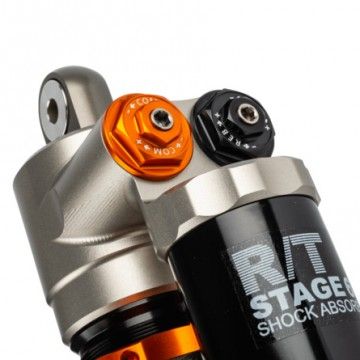

The shock absorber is adjustable for compression, rebound, and spring preload. The internal hydraulics are designed so that the compression and rebound adjustments are completely independent of each other.

The Stage6 R/T shock absorber for Pitbikes and MiniGP was developed in close collaboration with top riders, under the most demanding conditions and on numerous tracks. The calibration was determined based on extensive testing on the track and on suspension test benches.

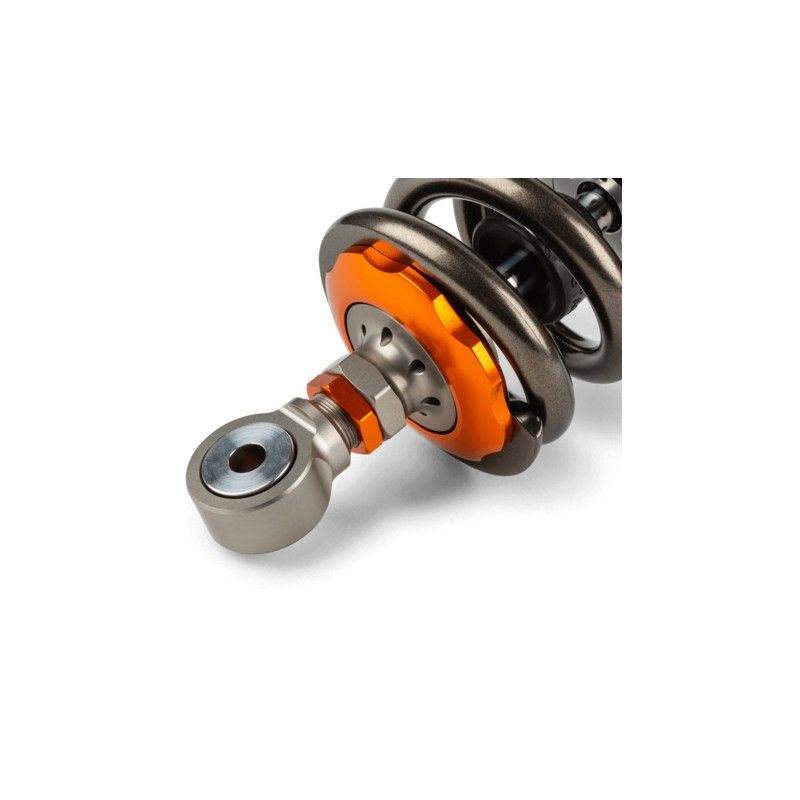

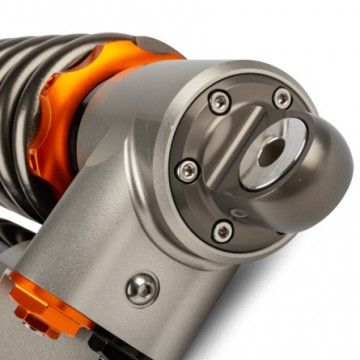

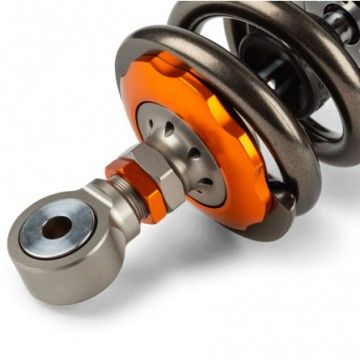

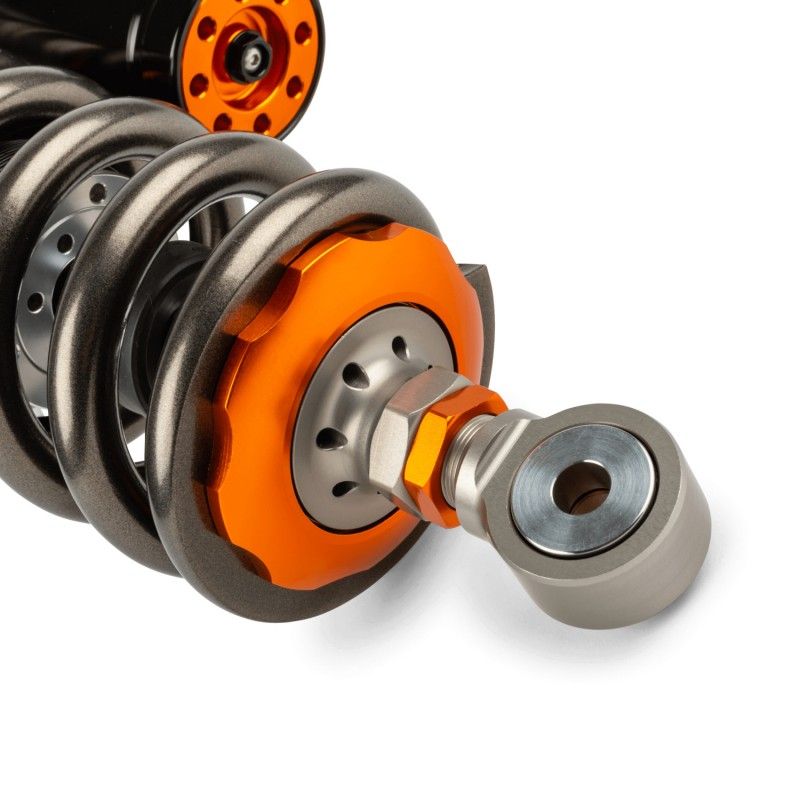

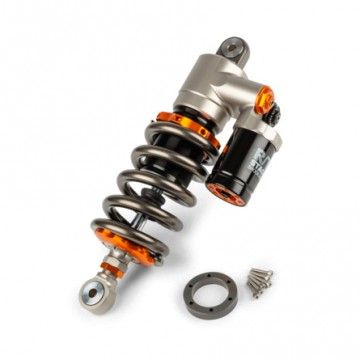

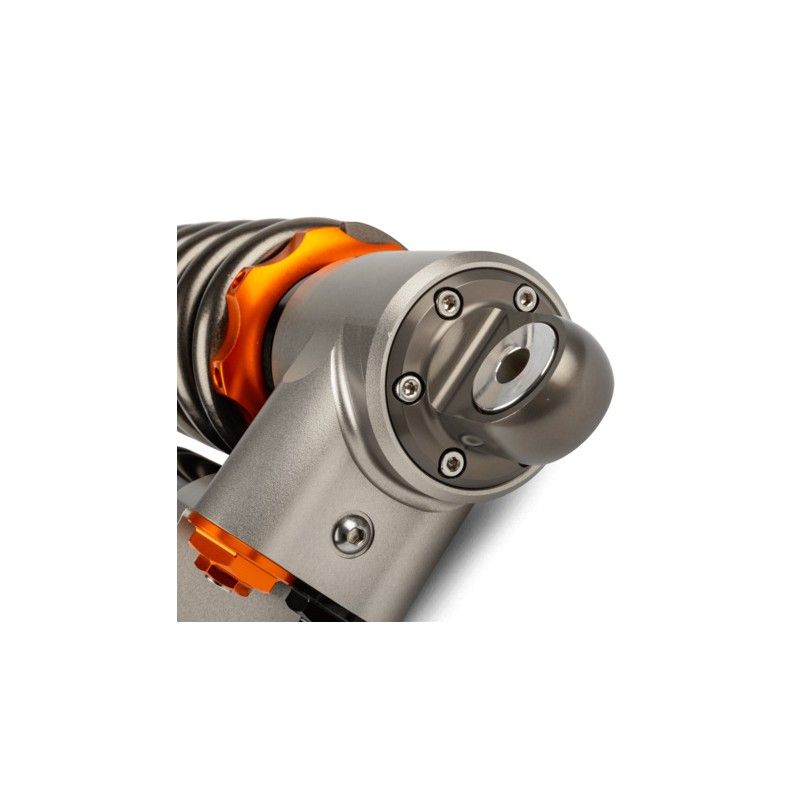

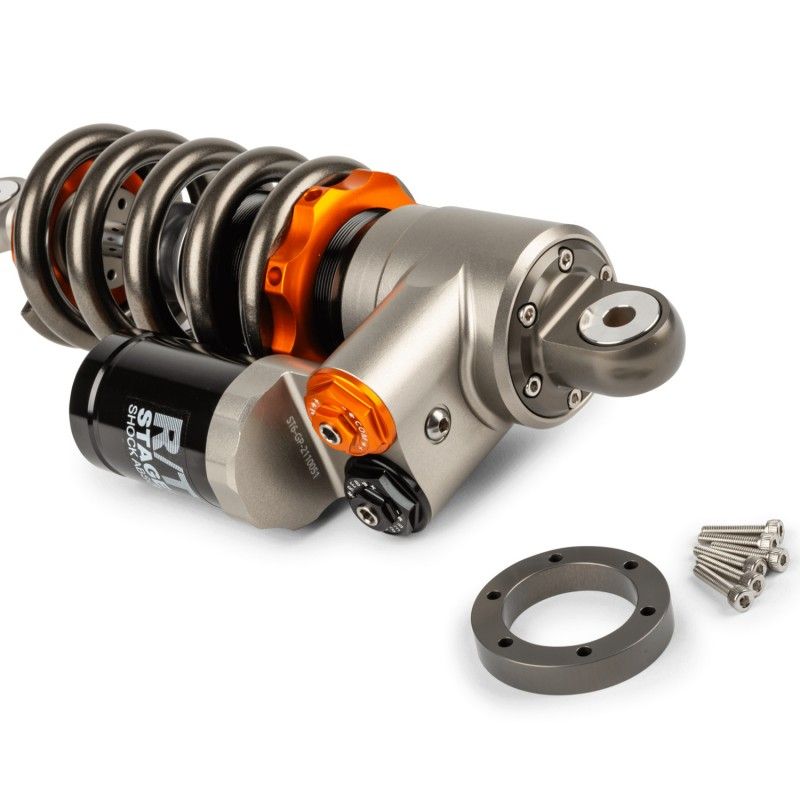

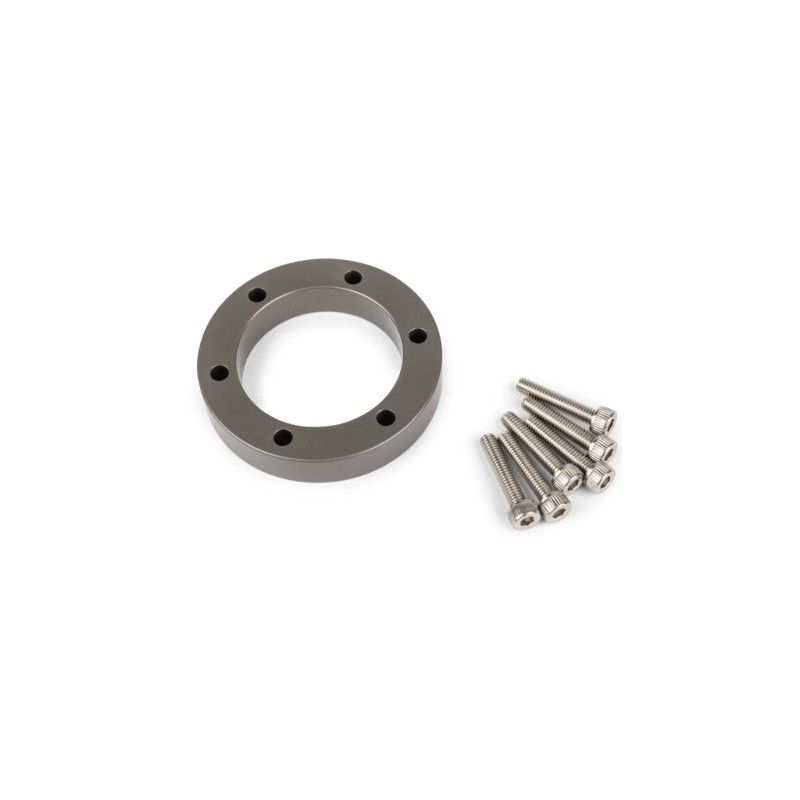

The shock absorber's wheelbase can be adjusted both through the lower eyelet and through a spacer located at the top of the shock absorber body; the latter can be removed to shorten the shock absorber. These two adjustments allow for a full 20 mm of adjustment, thus adapting the shock absorber to a wide range of models and riders.

Technical features:

Distance from center to center of hole: 305 - 325mm

Holder Width: 19.9mm

Eyelet diameter: 10 mm

Piston rod diameter: 14mm

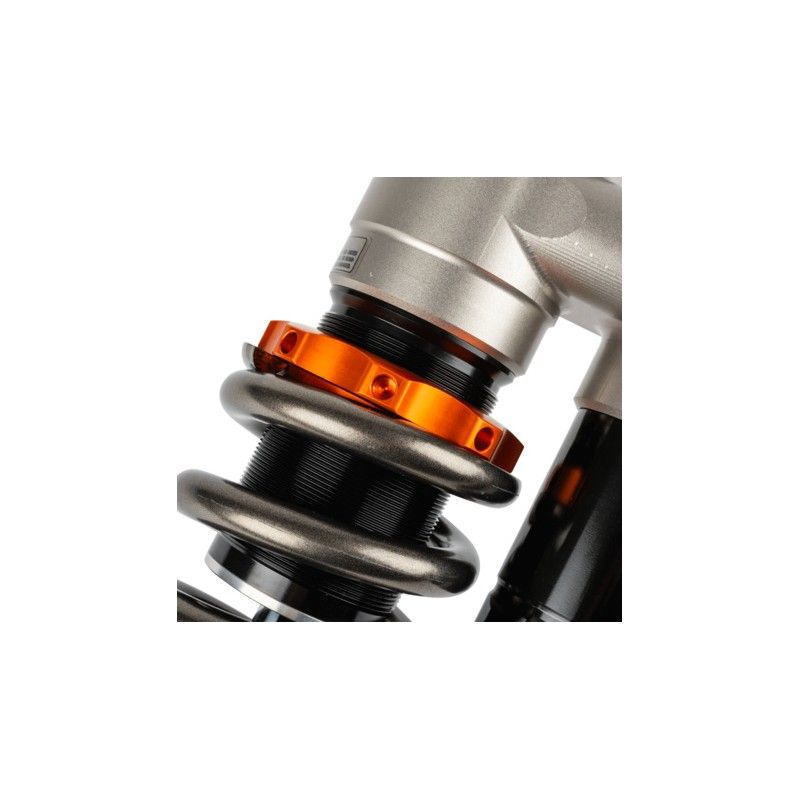

Spring load: 950LB/INCH - 166N/mm, spring inner diameter 61mm

Compression: 20 clicks

Extension: 25 clicks
