Engine Crankcase Bearing and Oil Seal Kit for Vespa Small Frame 50 - 90 - 125 Primavera Et3
BALL BEARING SKF 16005 25 X 47 X 8 See details

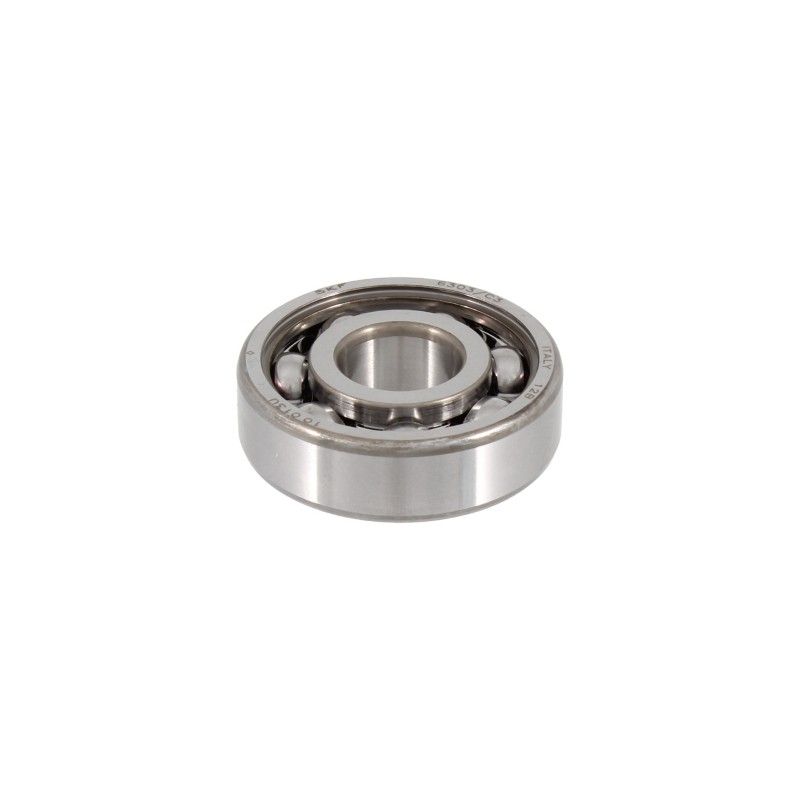

SKF 6303 C3 Ball Bearing 17 x 47 x 14 Piaggio Vespa 50-90-125 Primavera See details
BALL BEARING SKF 6204-C3 20 X 47 X 14 See details
BALL BEARING SKF 6204 20 X 47 X 14 See details
BALL BEARING SKF 6200-C3 10 X 30 X 9 See details
RMS CLASSIC GEAR SHAFT ROLLER CASE 16 X 22 X 12 PIAGGIO VESPA 50-90CC RMS : 100151210 See details
SERIE PARAOLIO MOTORE COMPLETA VESPA 50-90-125 PRIM.ET3 CIF : 5696-V See details
In Italy and Europe Via GLS / DHL / Fercam
24h from order confirmation
Secure via Paypal, Credit Card, Bank Transfer, Installment Payment
Pack description
Engine Crankcase Bearing and Oil Seal Kit for Vespa Small Frame 50 - 90 - 125 Primavera Et3
Pack content

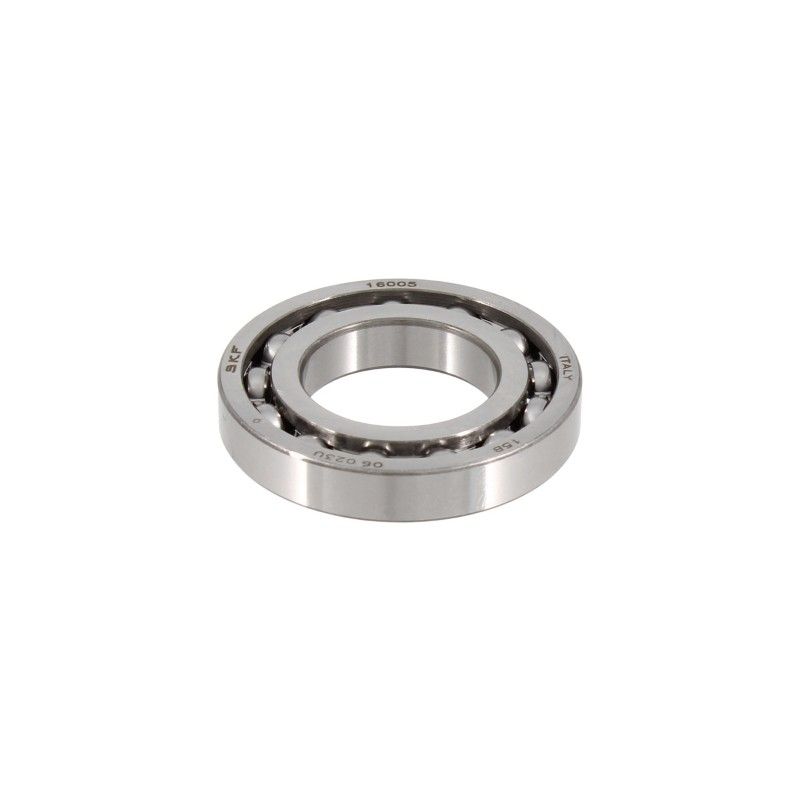

SKF ball bearings provide low friction and are optimized to reduce noise and vibration, allowing for higher rotational speeds. They can accommodate radial and axial loads in both directions, are easy to mount, and require little maintenance.
Technical specifications:
- Internal diameter [mm] : 25
- External diameter [mm] : 47
- Height [mm] : 8
- Cage type: sheet metal
- SKF Code: 16005
- Application: clutch gear
Suitable for: crankshaft
Type: ball bearing
Internal Ø [mm] : 17
External Ø [mm] : 47
Height [mm] : 14
SPEED REF [r/min] :
WITH BALLS ON ONE SIDE:
SKF ball bearings provide low friction and are optimized to reduce noise and vibration, allowing for higher rotational speeds. They can accommodate radial and axial loads in both directions, are easy to mount, and require little maintenance.
Technical Specifications:
- Internal diameter [mm] : 20
- External diameter [mm] : 47
- Height [mm] : 14
- Internal radial clearance: C3
- Application: Flywheel side crankshaft
- Type: Ball
- SKF Code: 6204-C3

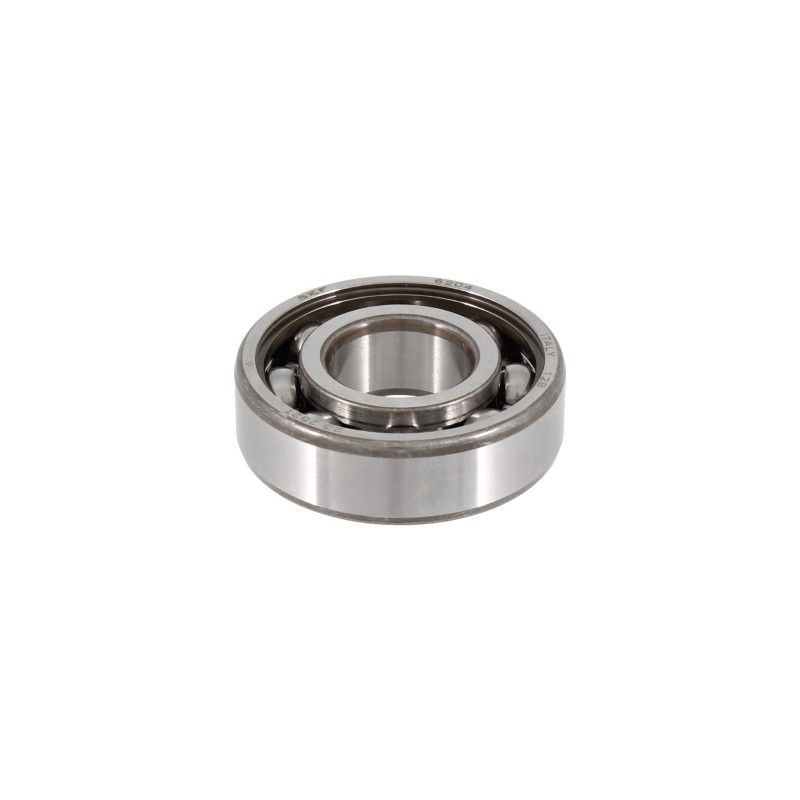

SKF ball bearings provide low friction and are optimized to reduce noise and vibration, allowing for higher rotational speeds. They can accommodate radial and axial loads in both directions, are easy to mount, and require little maintenance.
Technical specifications:
- Internal diameter [mm] : 20
- External diameter [mm] : 47
- Height [mm] : 14
- Cage type: sheet metal
- SKF Code: 6204
- Application: clutch bell
SKF ball bearings provide low friction and are optimized to reduce noise and vibration, allowing for higher rotational speeds. They can accommodate radial and axial loads in both directions, are easy to mount, and require little maintenance.
Technical Specifications:
- Internal diameter [mm] : 10
- External diameter [mm] : 30
- Height [mm] : 9
- Internal radial clearance: C3
- Type: Ball
- Application: Primary shaft
- SKF Code: 6200-C3

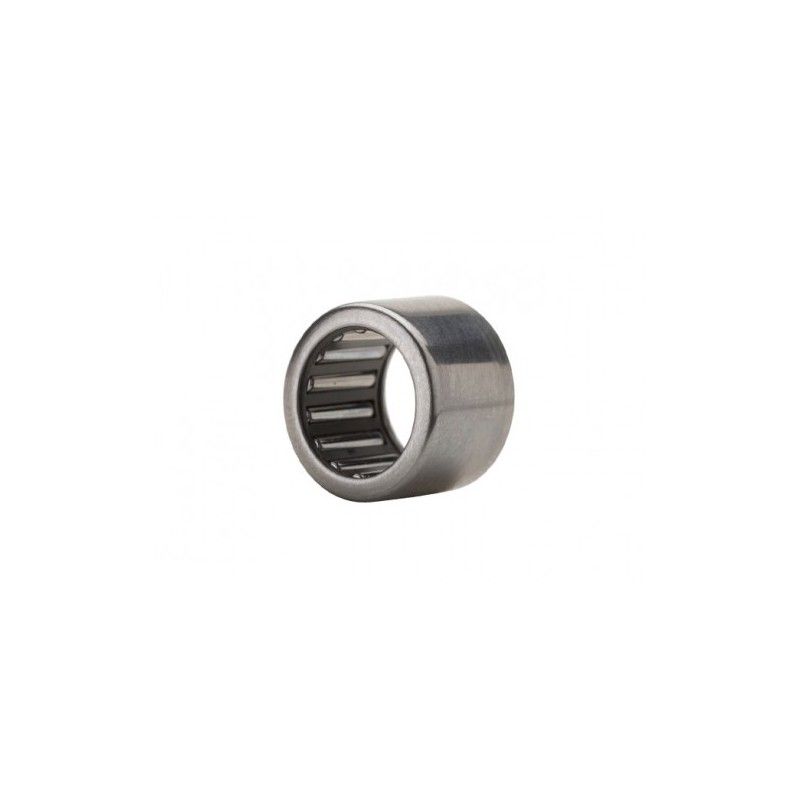

RMS code 100151210
RMS Classic roller cases with case back
The cup bearings in this series are needle roller bearings, open on both sides. The thin walls facilitate assembly by reducing overall dimensions, while maintaining a high radial load capacity.
Technical Features:
- Height [mm] : 12
- External diameter [mm] : 22
- Internal diameter [mm] : 16
- Application: Engine Crankcase
OIL SEALS COMPLETE SET
VERSION WITH VITON OIL SEAS CLUTCH SIDE
KIT COMPOSED OF / KIT COMPOSED OF:
N.1 5906-V VITON OIL SEAL (22.7x47x7) CLUTCH SIDE - VITON OIL SEAL, CLUTCH SIDE
N.1 5904 OIL SEAL (19x32x7) FLYWHEEL SIDE
N.1 5910 OIL SEAL (27x37x7) REAR WHEEL - OIL SEAL, REAR WHEEL
N.1 7000 OR RING 210 - RING OR 210
N.1 7001 OR RING 060 - RING OR 060
N.2 7002 OR RING 160 - RING OR 160
N.1 7003 OR RING 080 - RING OR 080
