VMC Disc Brake Kit for Vespa PX and PK - Fixed Disc
Mozzo Tamburo VMC MODELLO PX - PK per forcelle Zip/Et2/Et4 - Argento See details
Mozzo Ruota Porta disco e tamburo VMC per Forcella Vespa PX - PK125 See details
Supporto Pinza Radiale VMC per Forcelle PX e PK 125 See details
VMC brake pump for Vespa, p&p assembly on vintage Vespa handlebars See details
Pinza Freno Radiale VMC - 4 Pistoncini See details
Disco Freno VMC Fisso Per Vespa See details
- Flower
- Round Millefori
Kit Tubo in treccia VMC per freno a disco Vespa See details
Kit viti ZINCATE ARGENTO per Mozzo VMC per forcelle ZIP/ET2/ET4 See details
Tappo per Supporto Pinza Radiale VMC - Carbon Look See details
In Italy and Europe Via GLS / DHL / Fercam
24h from order confirmation
Secure via Paypal, Credit Card, Bank Transfer, Installment Payment
Pack content

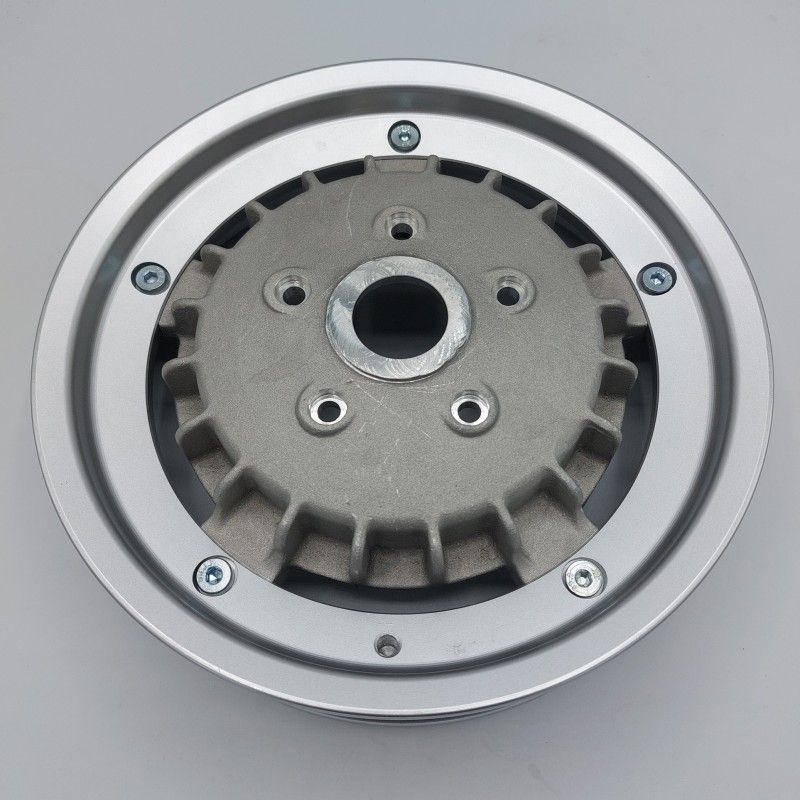

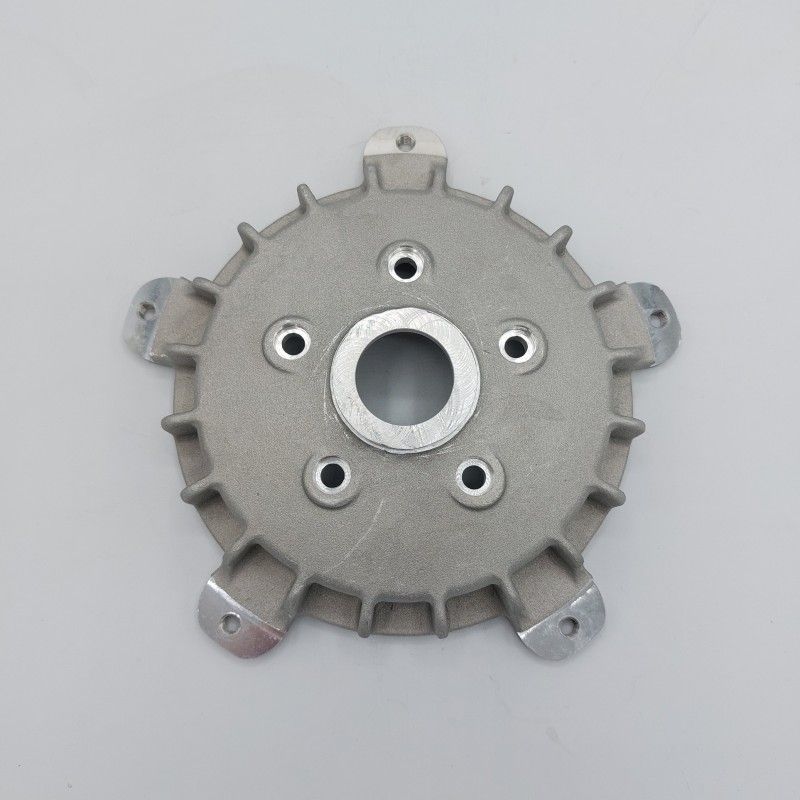

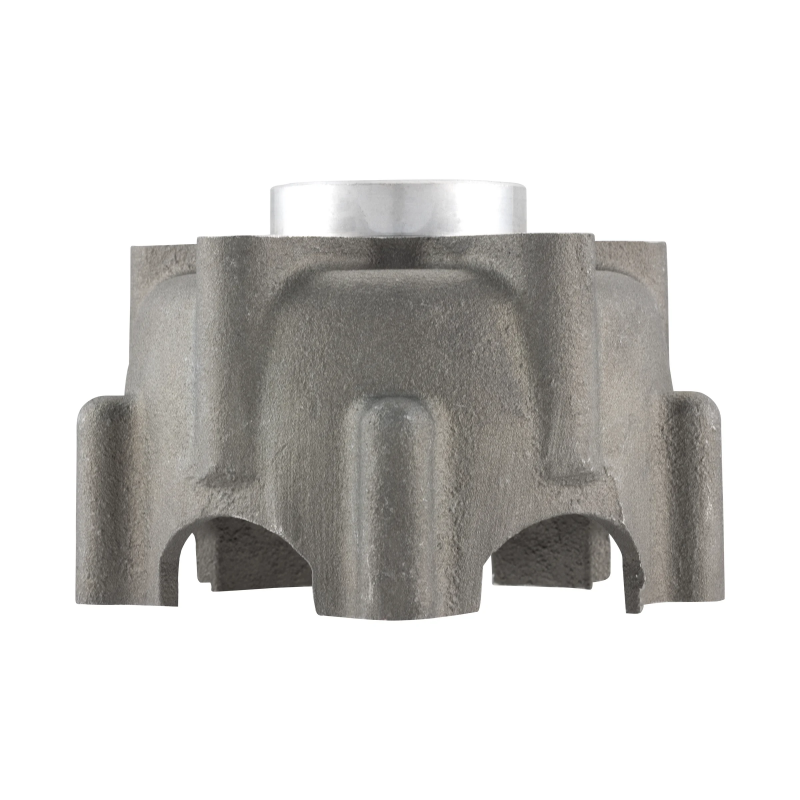

VMC Drum Hub MODEL PX - PK for Zip/Et2/Et4 forks modified to fit on Vespa
This hub is used to mount Vespa rims on Piaggio Zip, ET2, ET4 scooter forks,
which are modified to be mounted on Vespa frames.
It has been designed to keep the Vespa rim perfectly in the center with the Piaggio Zip, ET2, ET4 fork and similar.
For fixing to the fork hub, it is recommended to use Allen screws with a low head for a more linear look.
With rims like the originals that mount the inflation valve at 90°, the valve could touch the brake caliper.
Place strong thread lock on the studs for attaching the drum to the hub
For fixing to the disc/holder hub we recommend using the low Allen screw kits sold separately
VMC Wheel Hub Disc Holder and Drum Adapter for Fork for Vespa PX, PK125Xl, HP with 20mm axle
With this hub you can mount VMC adapter drums for traditional Vespa rims or Piaggio Zip rims, modern Piaggio Vespa rims, 11-inch Sip rims or similar.
Floating and fixed brake discs with a diameter of 200mm can be mounted on the hub, specifically for the Vespa PX Millennium models, Grimeca disc brake kit, LML Star, modern Vespa (LX, ET2, ET4, etc.), Piaggio ZIP
Depending on the Vespa model, the specific speedometer gear ring can be mounted.
DURING THE ASSEMBLY PHASE OF THE SPEEDOMETER GEAR RING, APPLY AN AXIAL ADHESIVE OR STRONG THREADLOCKER
Complete with bearings and oil seals.

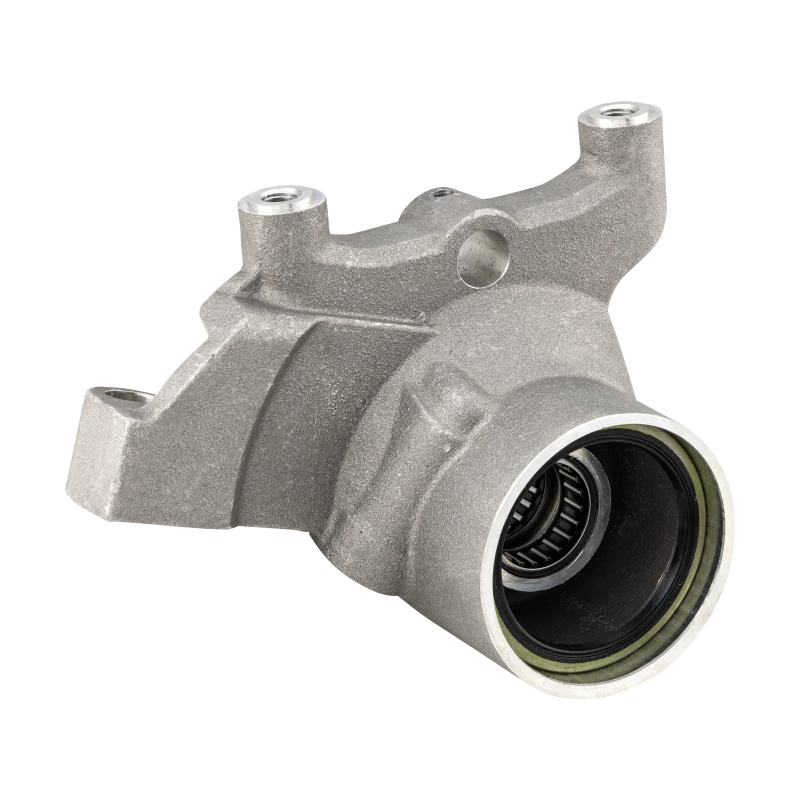

VMC Radial Caliper Support for PX and PK 125 and LML Forks
This bracket allows you to mount 4-piston radial brake calipers with 82mm fixing hole spacing such as VMC, Stage6, BGM , GranSport, Adelin, 8.1 Hurricane, Pinasco and similar calipers.
It is prepared for the external digital sensor of Koso specific for Sip digital speedometers
The kit is complete with special shims for centering the caliper, two needle bearings and the oil/dust seal.
Fits perfectly on VMC disc hubs and also on Grimeca, LML, Piaggio or similar disc hubs for PX, Pk125Xl, PK-Hp forks
fits Vespa models:
125 Primavera/ET3/GT/GTR/Super/TS/150 Sprint/Super/180SS/Rally/50 Special/Elestart/N/L/R/Revival/S/SR/90/R/100/PX80-200/PE/Lusso/T5 Classic/PK50-125 S/SS/Lusso/XL/ETS

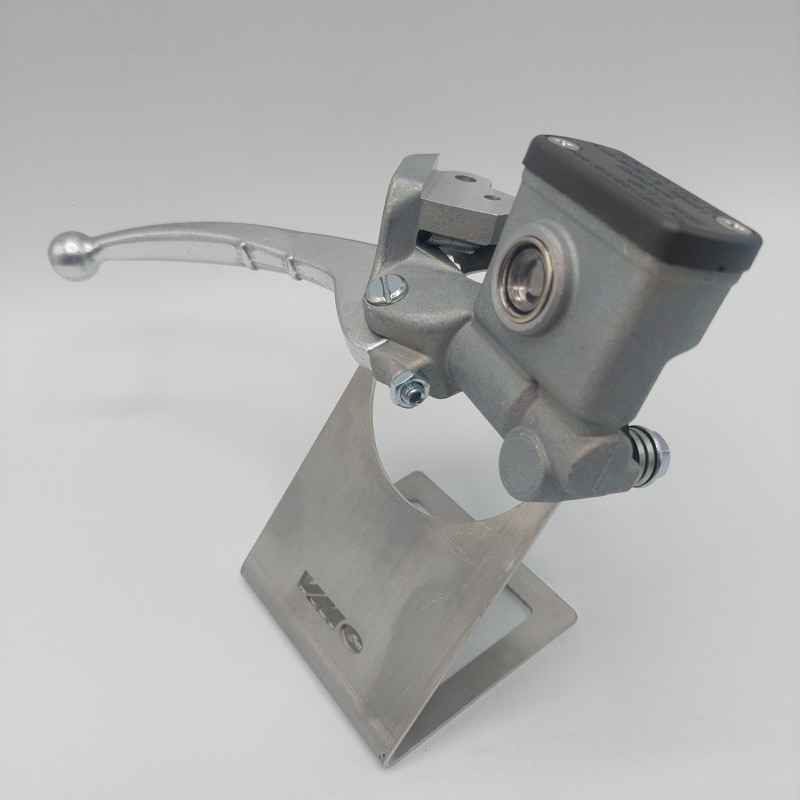

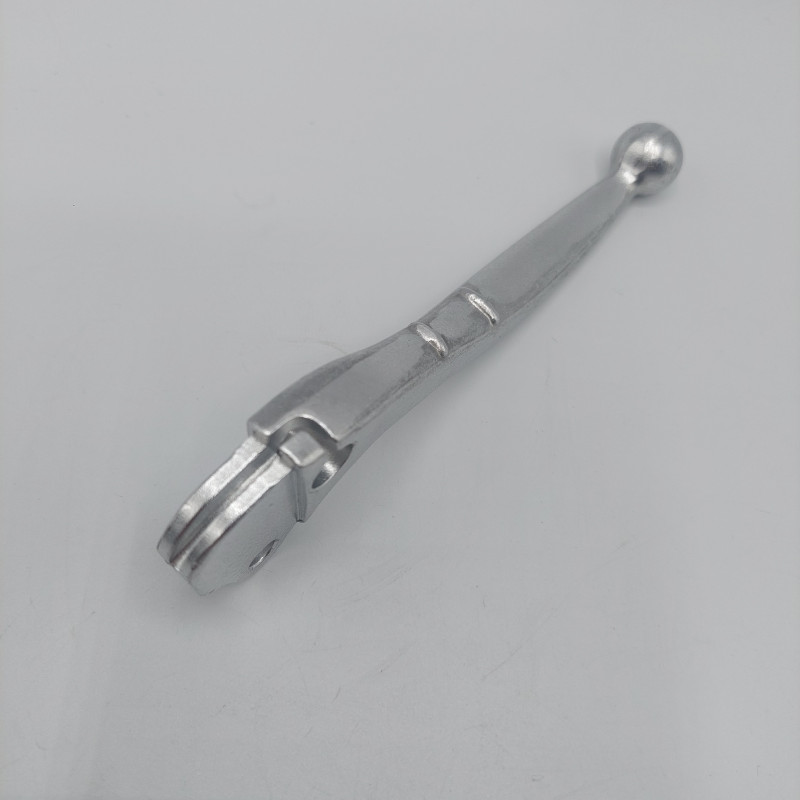

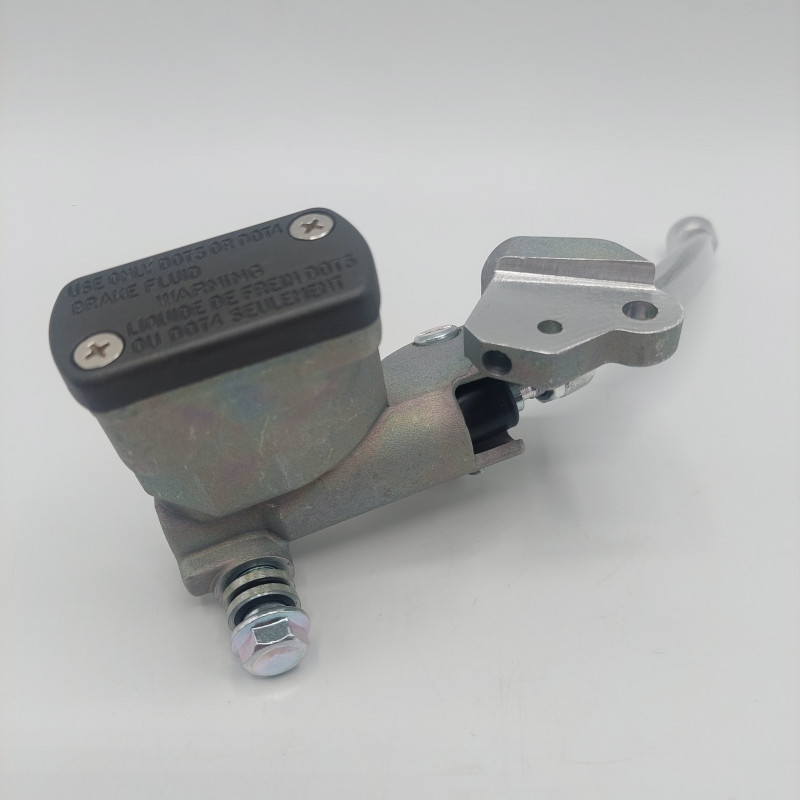

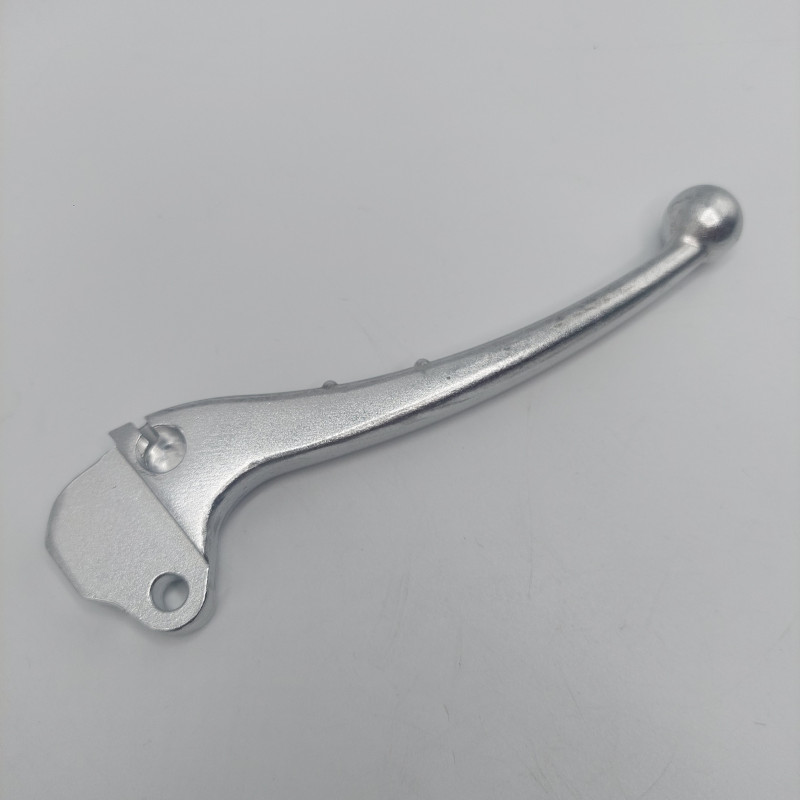

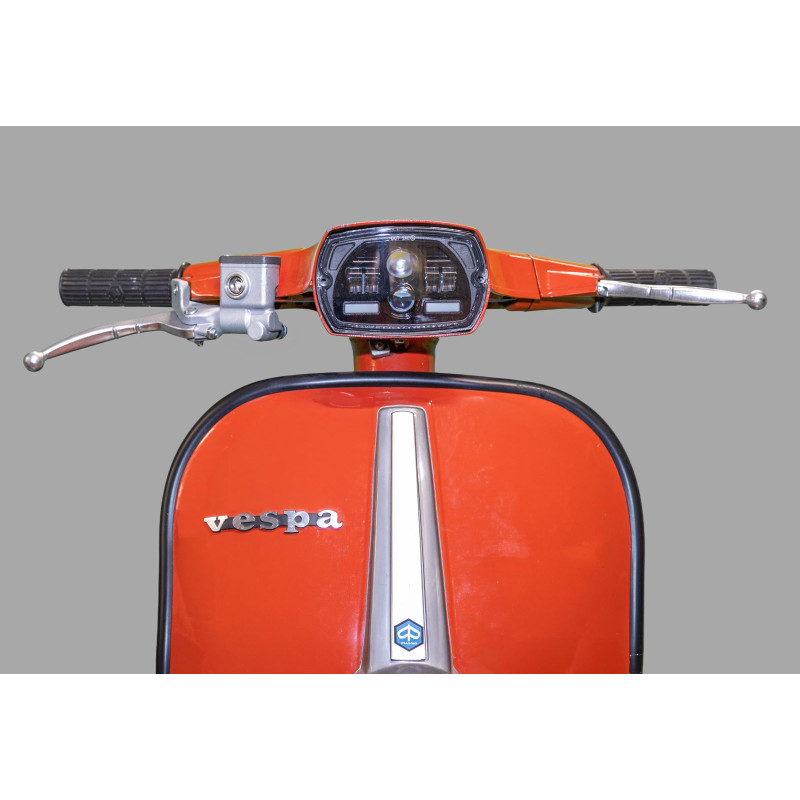

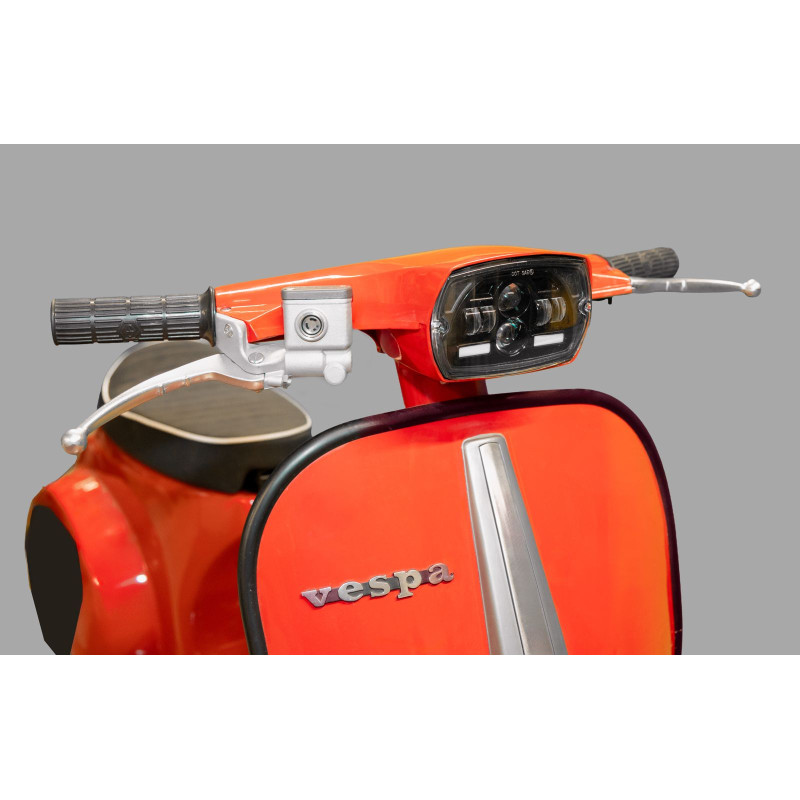

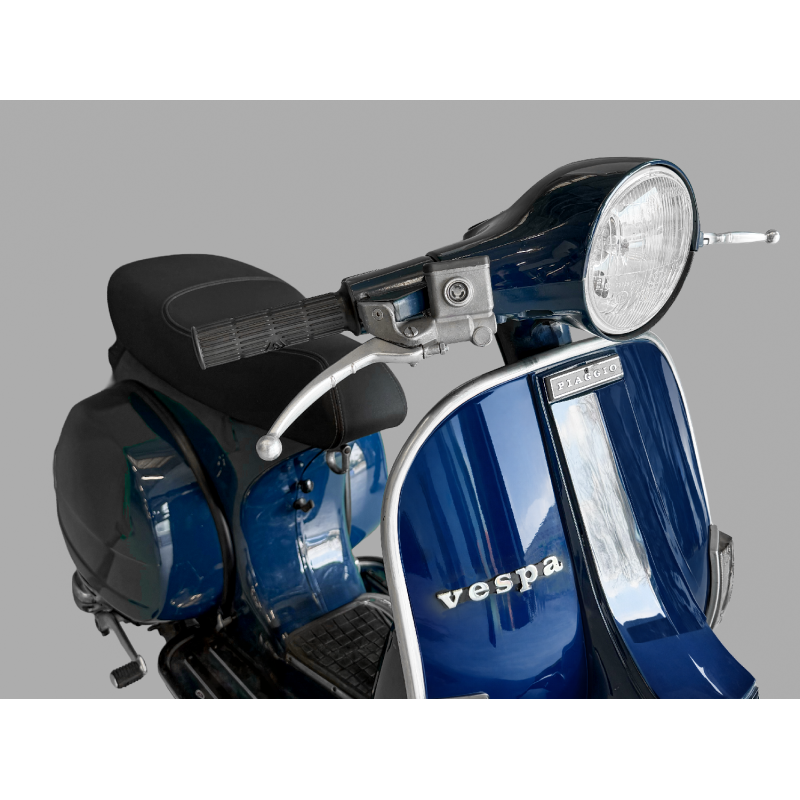

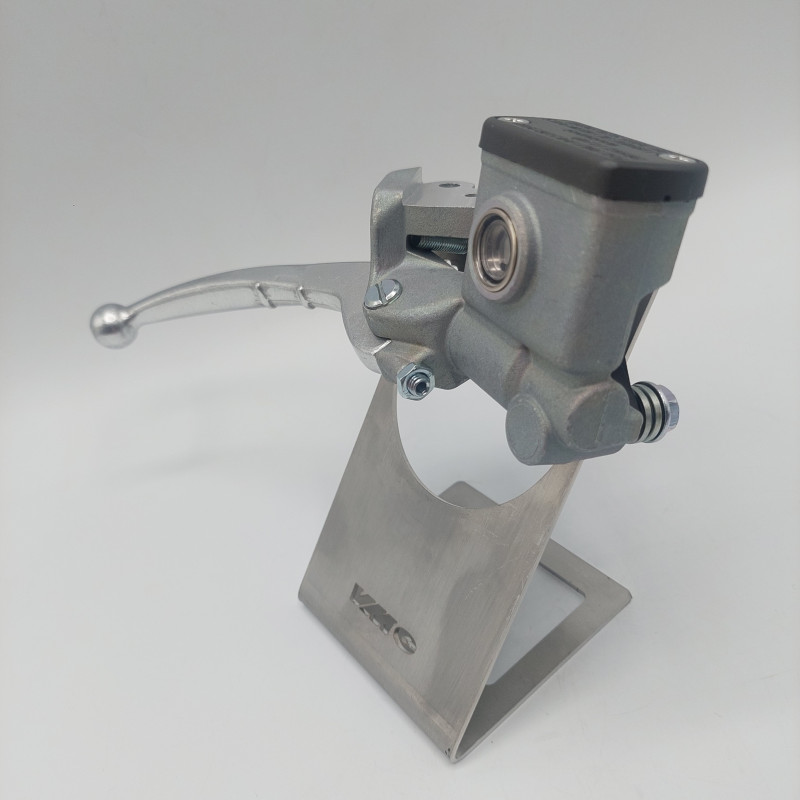

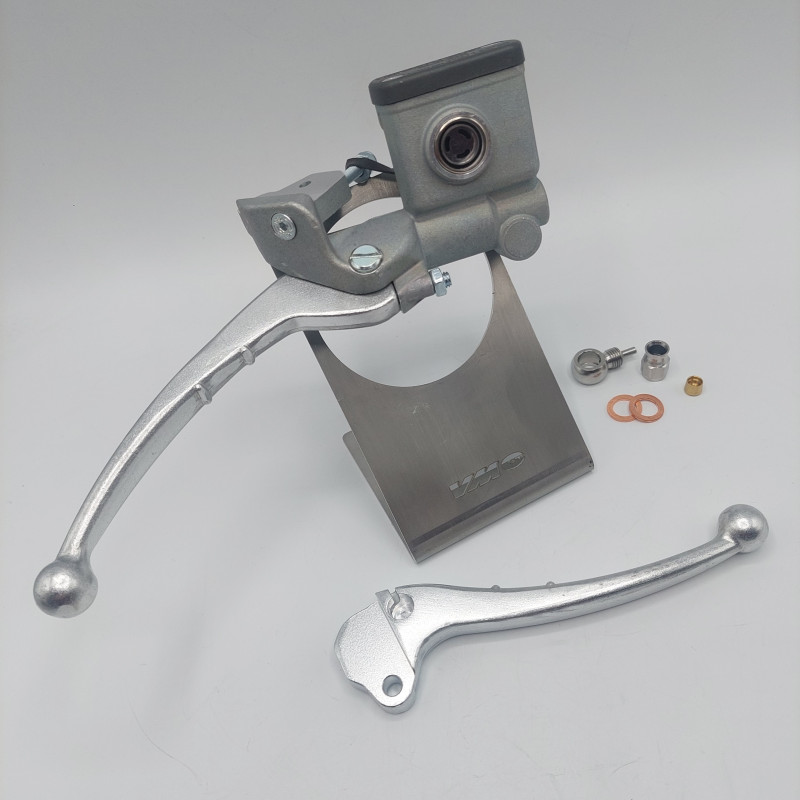

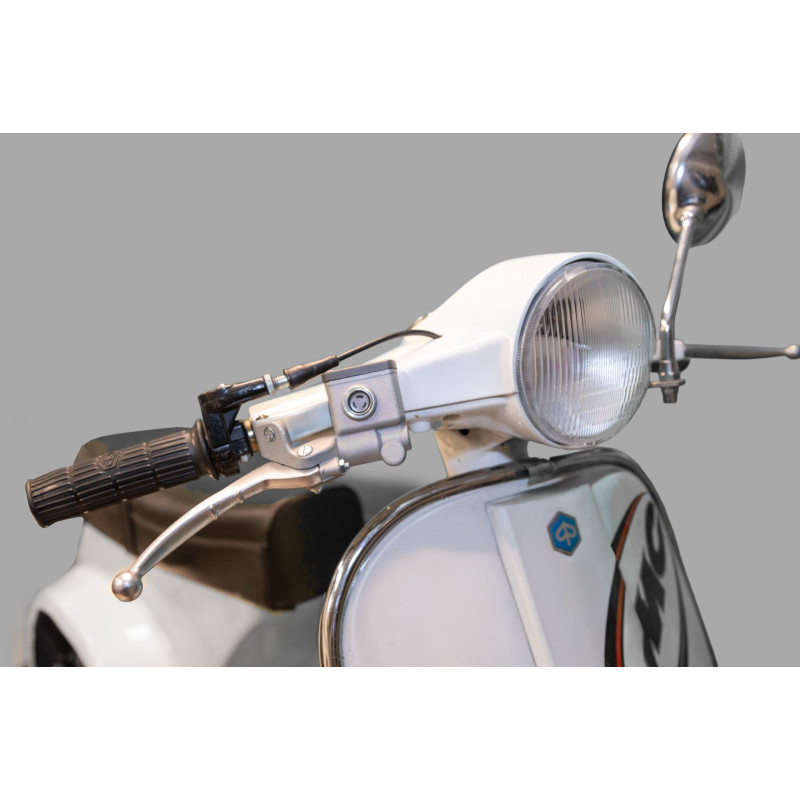

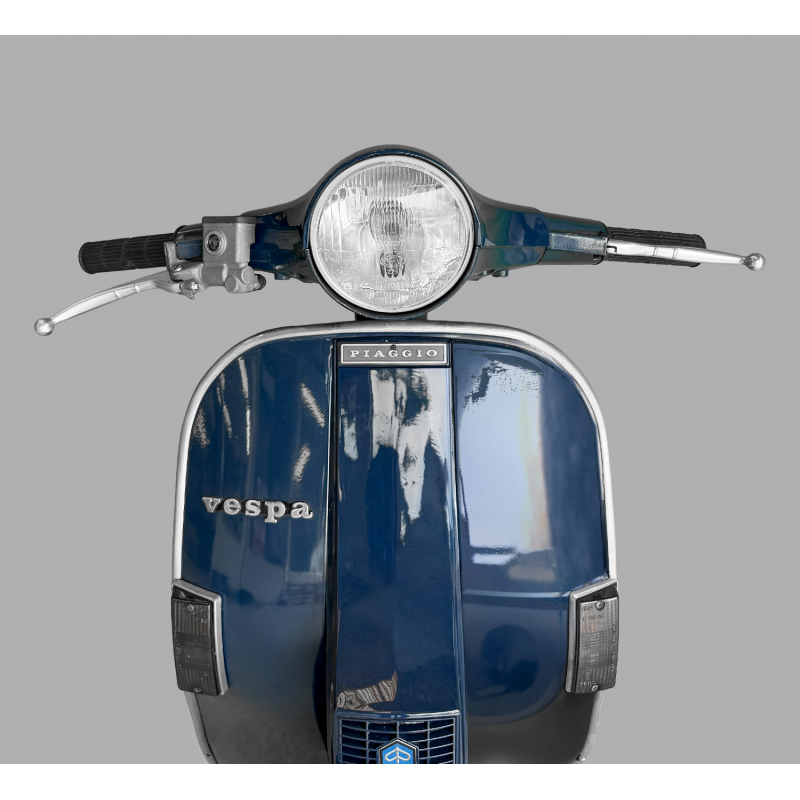

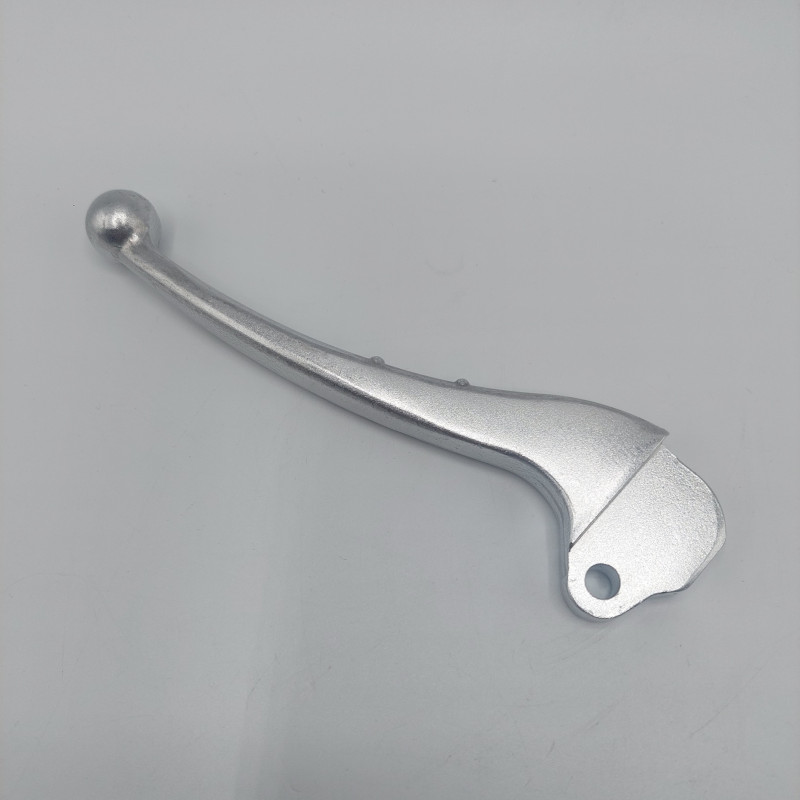

VMC brake pump for Vespa complete with dedicated clutch lever for p&p mounting on vintage Vespa handlebars
for APRILIA/GILERA/MALAGUTI/MBK/PIAGGIO/YAMAHA SR/Runner/F12/Booster/Nitro/NRG/TPH/Aerox
for Vespa PK/S/XL/PX80-200E Lusso/'98/MY/T5
Aluminum
Distance between holes: 82 mm
VMC Radial Brake Caliper - 4 Pistons
82mm fixing hole center distance ideal for VMC pitbike and miniGP forks and for the VMC radial brake caliper support for Vespa and other similar ones on the market for Piaggio Zip and modern Vespa forks. With the VMC caliper support it fits perfectly on 10-inch Vespa and Zip rims and does not require adaptations.
Made entirely of CNC machined Avional aluminum, with top quality pistons and seals, all tested on a test bench and 100% guaranteed.
It was designed and manufactured in Italy by Vmc and Ottopuntouno, a top quality company that is increasingly establishing itself in the racing aftermarket world for the quality of its products.
Fitted with sintered brake pads made in Italy with a compound designed and tested on the racetrack and also on the road which, combined with our brake discs, provides maximum braking capacity and resistance to high temperatures.
Available in the anodized versions "Silver" and "Black"
From decades of experience in disc brakes for MiniGP and Pitbike, VMC has created for Vespa:
- PX 125-200 E '98/MY/'11/ET2/ET4/LX/LXV/S/Primavera/Sprint 50-150ccm
This series of discs are also suitable for the GRIMECA Classic NT/PX'98/LML kit.
Disc diameter: Ø 200mm
Thickness: 4 mm
Number of fixing holes: 5
Floating hub attachment.
Available in two combinations:
- Flower with cuts and wavy external shape to increase the cleanliness of the pad surface during braking
- Round with holes and circular shape for a traditional look but with maximum braking efficiency

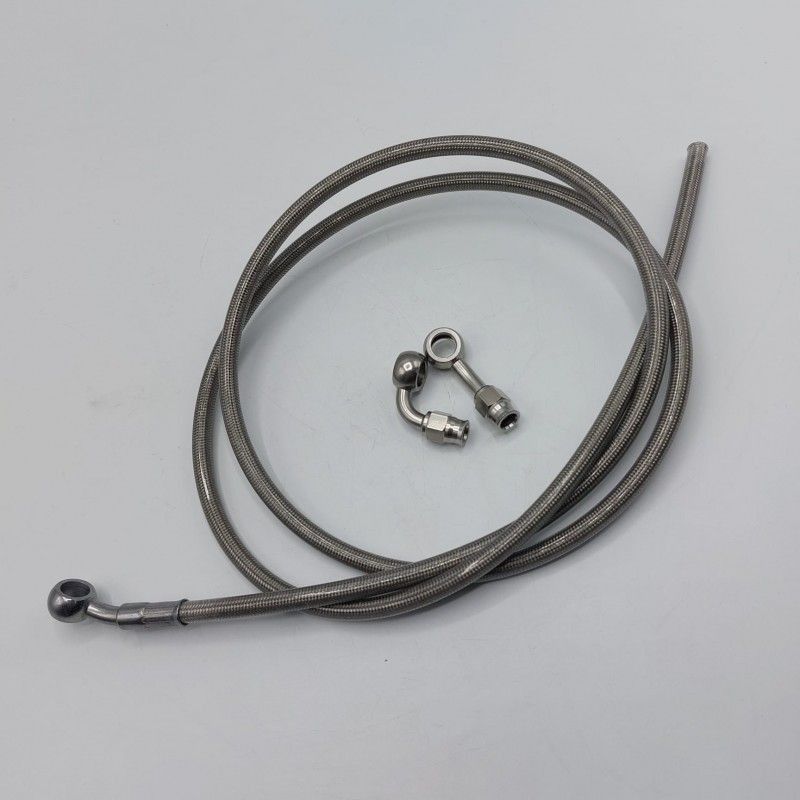

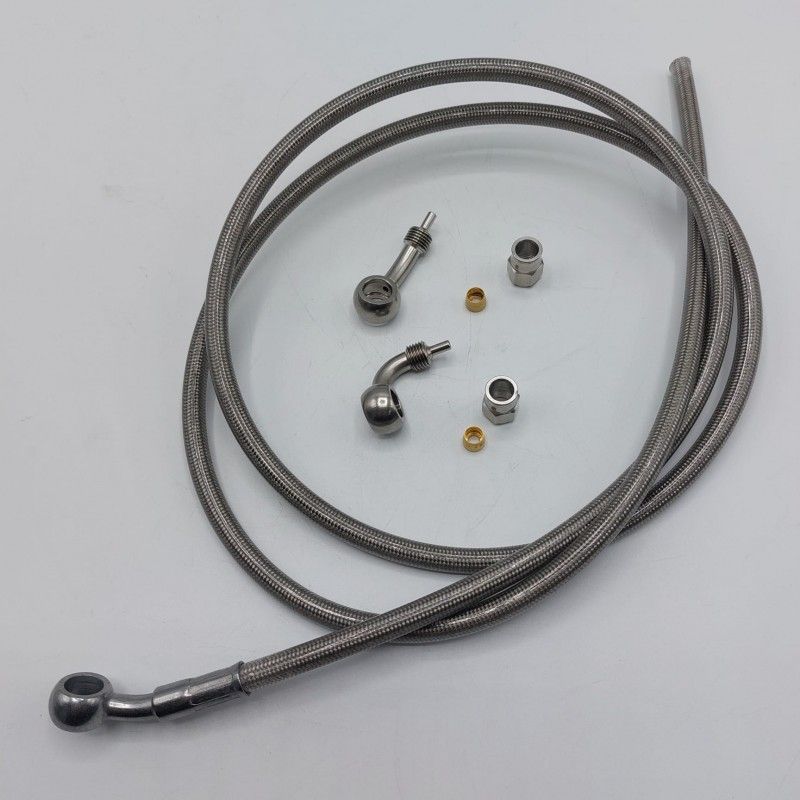

VMC Braided Hose Kit for Vespa Disc Brakes
The kit has been designed and created for those who fit disc brakes on both small and large frame Vespas.
It is made with the highest quality braided hose produced in Europe, it is 1450mm long and complete with 3 different fittings to adapt to any fork
One of the 3 fittings is crimped to the tube while one of the 2 fittings available in the kit must be started on the other end of the tube
The process is to run the tube through the fork and handlebars, cut it to size and then make the final connections.
To connect the screw-on fitting to the pipe, you need to remove a portion of the plastic outside the braided pipe for a length of approximately 35mm
so that the external fitting can pass through (see photo)

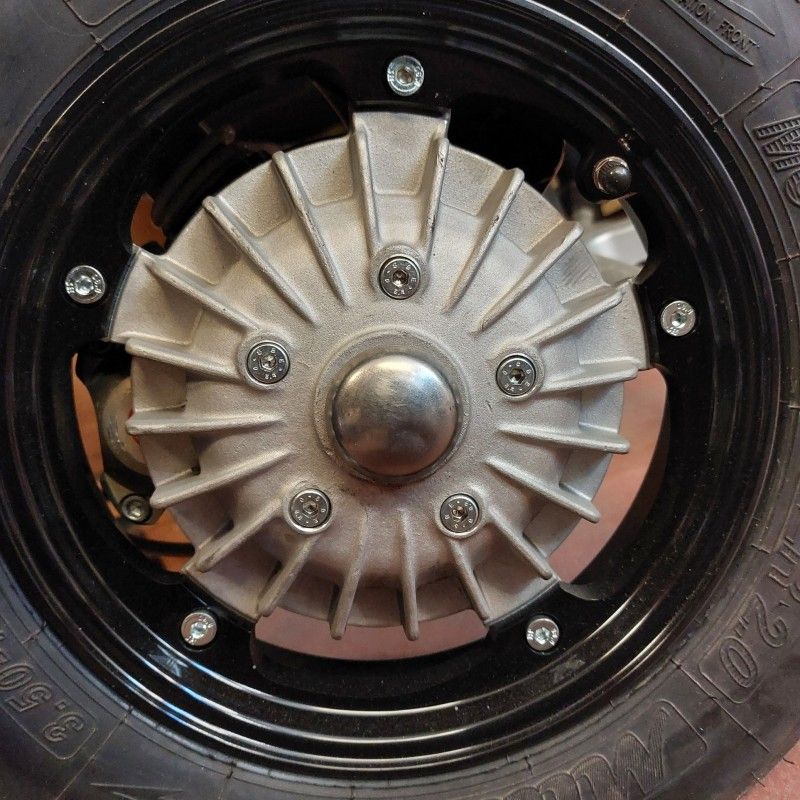

ZINC PLATED SILVER bolt kit for VMC Hub for ZIP/ET2/ET4 forks
With this kit the screws are flush with the hub and give a much more uniform look.
Ideal for those who have a light-coloured hub like the original Piaggio ones.

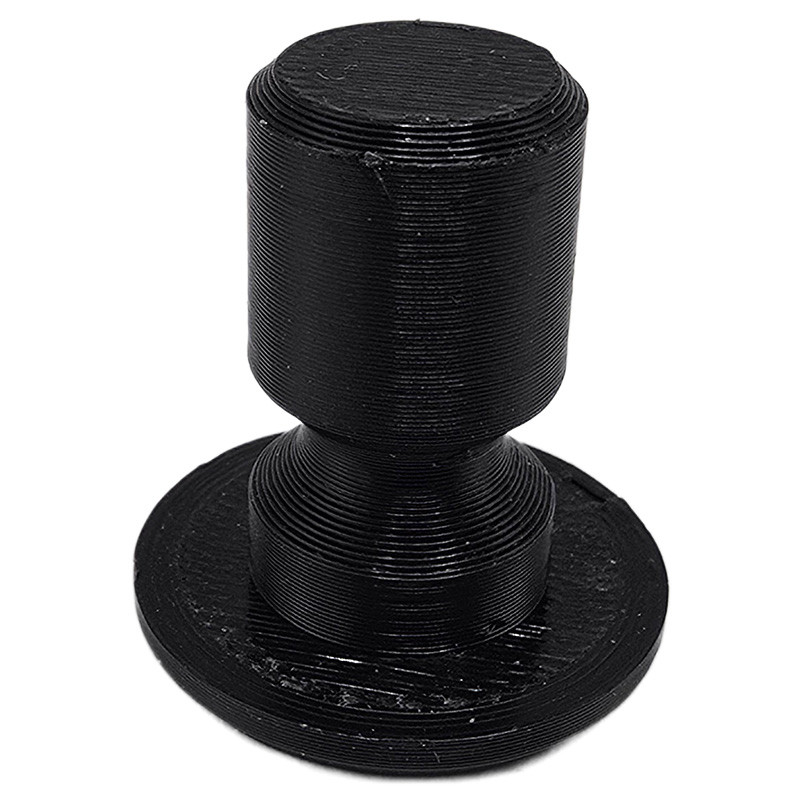

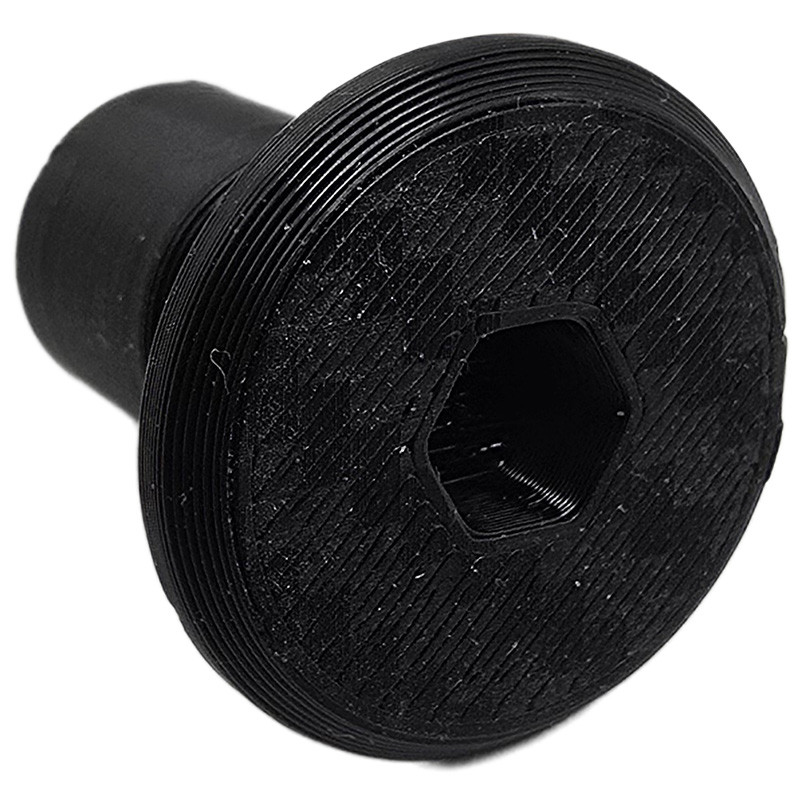

VMC Radial Caliper Support Cap - Carbon Look
Questions
| Luca on 19/01/2026 |
Question: Le sospenzioni posso pontare sempre quelle di pk giusto? 19/01/2026 |
Answer: Sì, questo kit è compatibile con forcelle per Vespa PX, PK125Xl, HP con perno da 20mm 20/01/2026 |
|
| Luca on 12/01/2026 |
Question: Salva vorrei sapere se questo kit e solo per le forcelle di zip modificate, ho monta anche su forcelle originali di vespa smallfreme 12/01/2026 |
Answer: Oltre alle forcelle zip modificate questo kit è anche compatibile con forcelle PX e PK 125 ed LML (con perno da 20mm) 12/01/2026 |
|
